The latest addition to the most reliable diaphragm pump range.
Diaphragm pumps are a great choice when it comes to handling a wide variety of materials, from thin liquids to high-viscosity paints. QLS technology and low stroke frequency puts less stress on the components, significantly extending the service life of the pump and reducing maintenance costs. Valves are made of wear-resistant carbide and the diaphragm is made of solvent resistant polyamide.
Why SF21 Pro?
So many options!

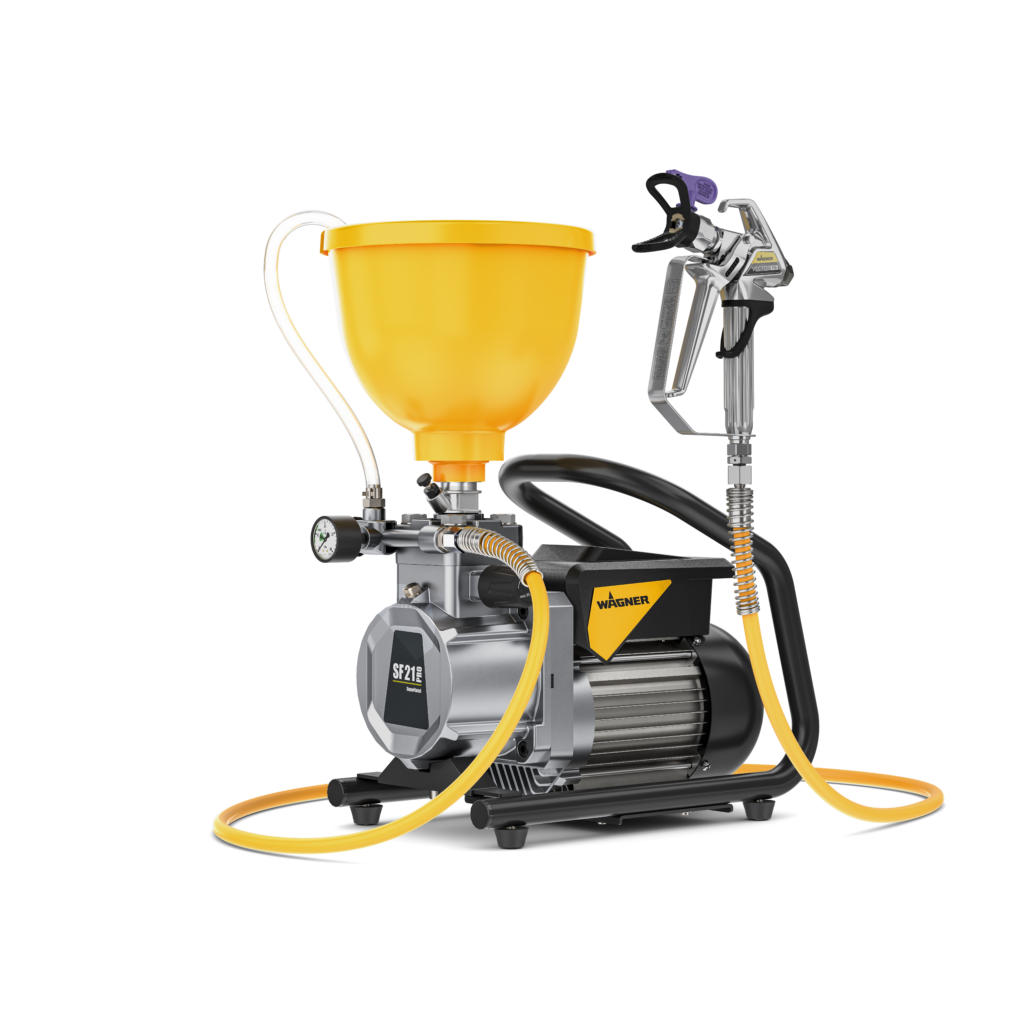

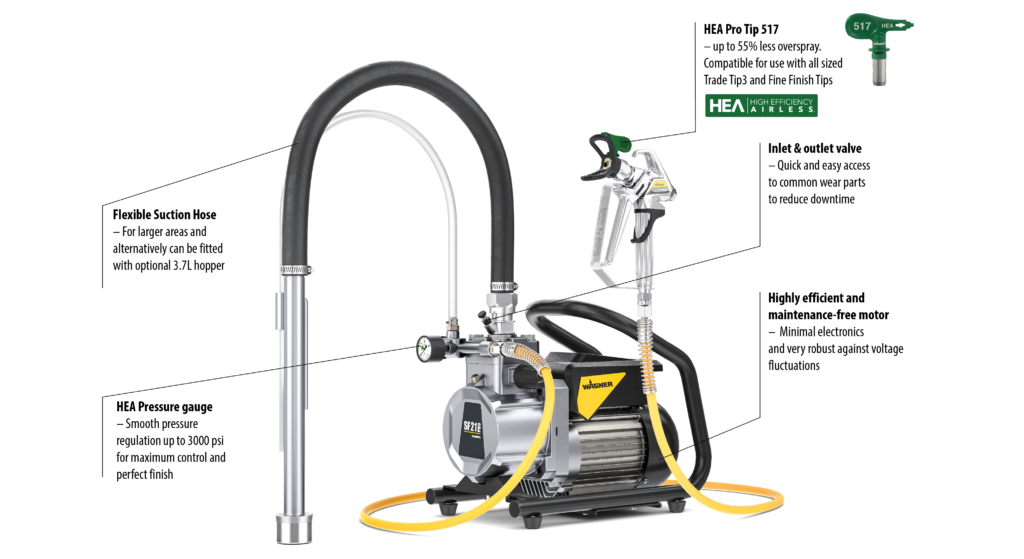

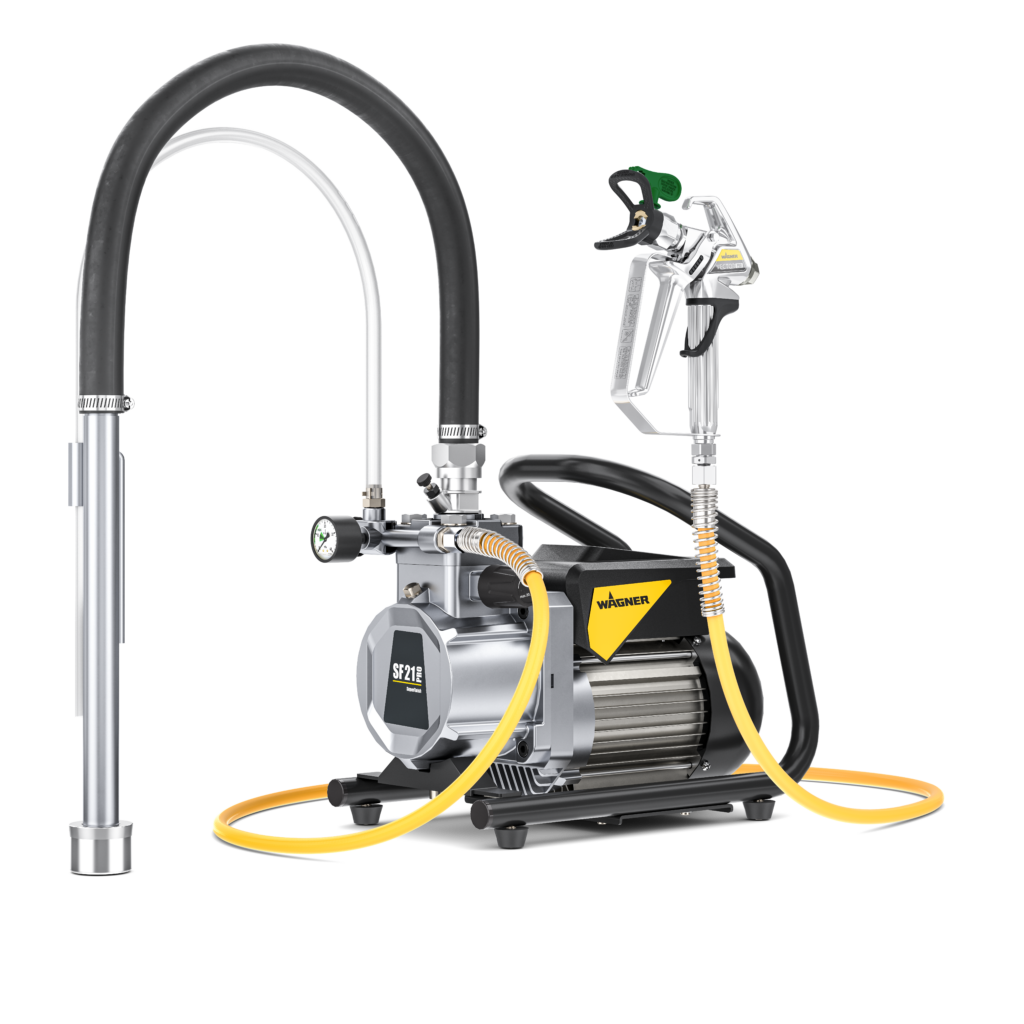

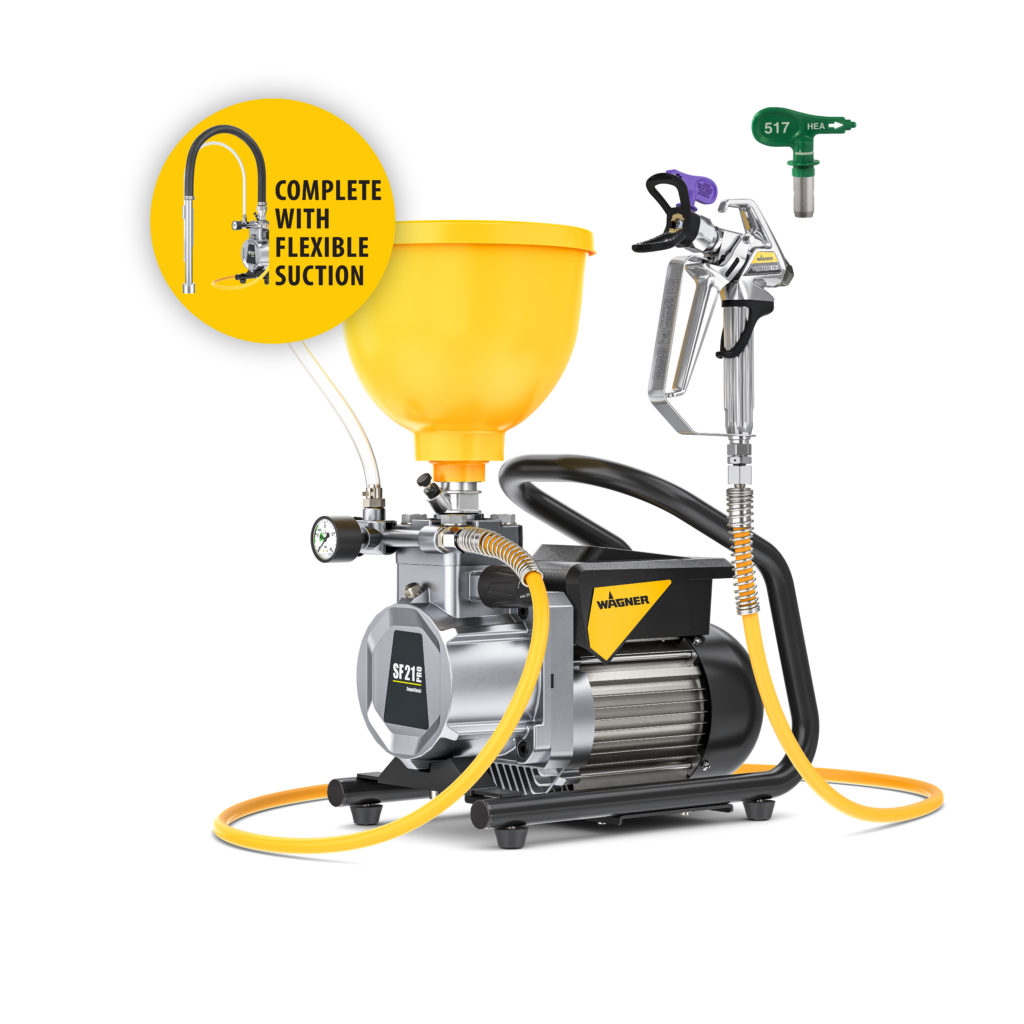

Available in multiple configurations. Flexible Suction, 3.7L Hopper and 2-in-1 which includes both a hopper and flexible suction! Find out more below.
Keeping it simple.

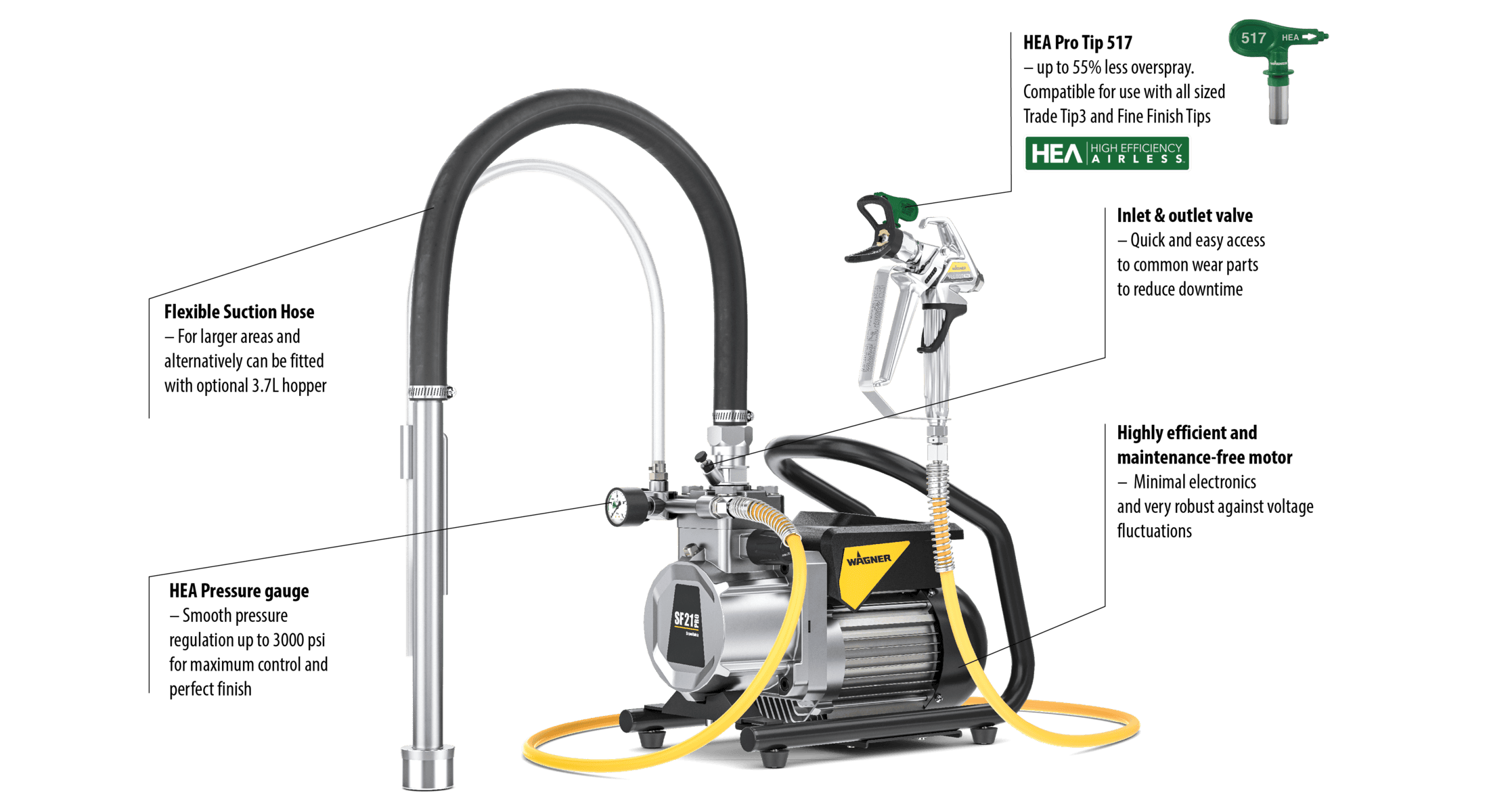

Diaphragm pumps use fewer parts – diaphragm, inlet & outlet valve – compared to the piston pump -piston, packings, inlet & outlet valve – with the packings tending to wear out quicker due to the friction caused by the piston pumping material out of the pump. Diaphragms can be serviced using a quick change valve set, whereas pistons are required to be taken to a service centre for service.
Let's get to the details
Technical details and inclusions of each pump are listed below.
| SF21 Pro Flex Suction | SF21 Pro 3.7L Hopper | SF21 Pro 2-in-1 | |
| Part Number: | 2437316F | 2437316H | 2437316SP |
| Max. Flow Rate: | 2.1 l/min | 2.1 l/min | 2.1 l/min |
| Max Operating Pressure: | 3000 psi | 3000 psi | 3000 psi |
| Max. Hose Length: | 30m | 30m | 30m |
| Max. Tip Size: | 0.021″ | 0.021″ | 0.021″ |
| Pack Inclusions: | SuperFinish 21 base unit, flexible suction, Vector Pro airless gun, 15m high-pressure hose, HEA Pro tip 517, HEA pressure gauge, gun filter and operation manual | SuperFinish 21 base unit, 3.7 litre hopper, Vector Pro airless gun, 15m high-pressure hose, Fine Finish tip 310, HEA pressure gauge, gun filter and operation manual | SuperFinish 21 base unit, flexible suction, 3.7 litre hopper Vector Pro airless gun, 15m high-pressure hose, HEA Pro tip 517, Fine Finish tip 310, HEA pressure gauge, gun filter and operation manual |
