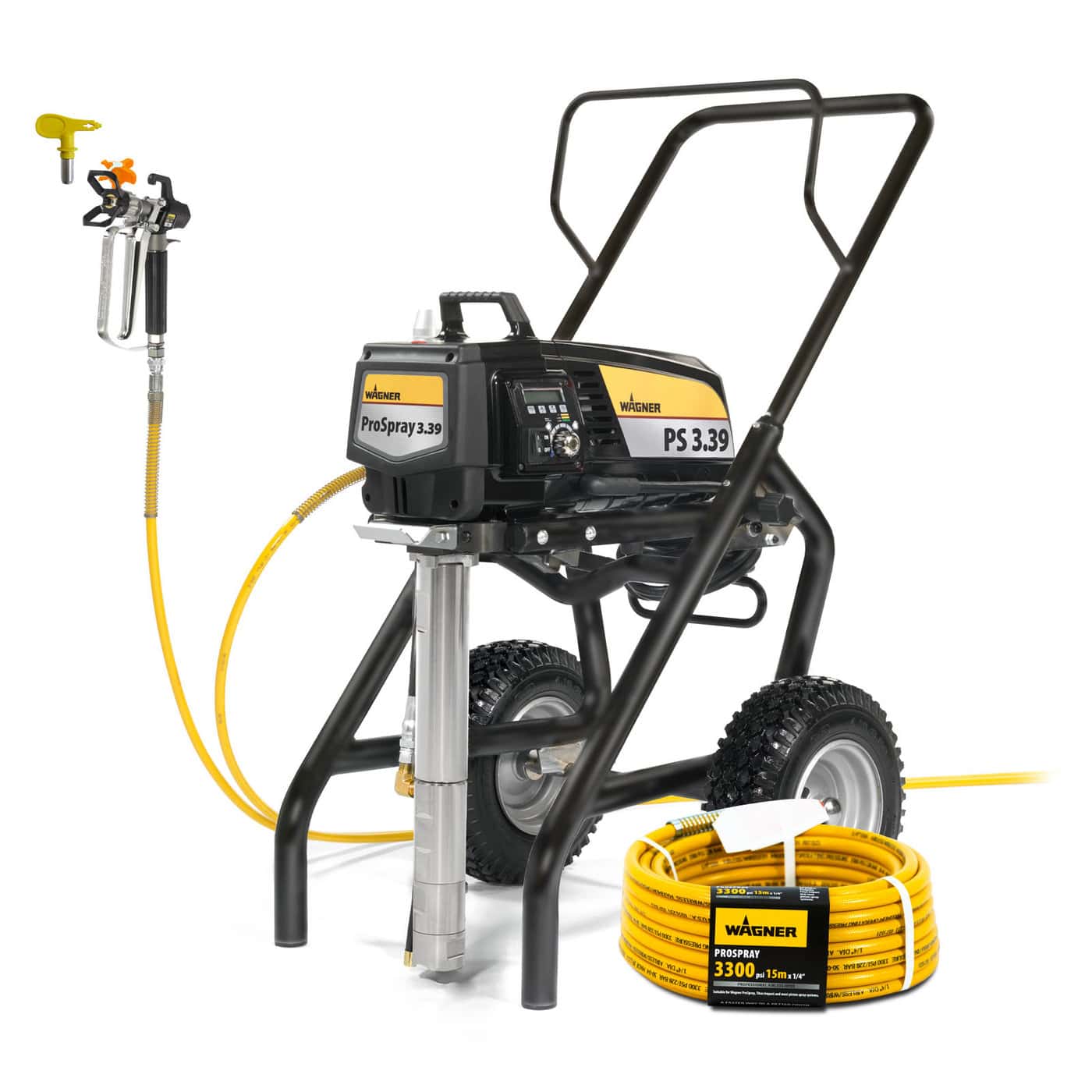

ProSpray PS 3.39 Passive Fire Protection

$13,971.00

SKU: 2488204
  • Long-stroking piston
  • Retractable telescopic handle for compact storage
  • Angled cart design for one man loading and unloading
  • Quick-release fluid section without tools
  • Direct immersion inlet valve providing greater intake power
  • Larger 3/8" hose increases flow for thicker materials

Features & Inclusions

Features

Designed for large production Residential, Roofing, Maintenance, Industrial Applications and projects requiring more than one gun to be used. Can also spray high viscosity materials such as non-aggregate texture coatings and plaster based products, including Filling Compounds and Intumescent Paints.

  • Digital Electronic Spray Control (DESC): Regulates all functions including pressure control, job timers, litres used, self diagnostics/trouble-shooting & anti-theft features
  • AG-14 Airless Gun - Complete with 231 and 431 TradeTip 3 and base
  • Auto-Oiler - Convenient oiling of piston with the press of a button
  • High Pressure Filter - Additional filtering protects against paint blockages
  • High Boy Cart Design - Mounted on a sturdy steel trolley with telescopic handle, rugged wheels & convenient hose rack
  • Angled cart design for one man loading and unloading
  • Tilt cart feature for easy change over of paint drums
  • Long stroking piston
  • Quick-release fluid section (without tools)
  • Direct immersion inlet valve providing greater intake power

Inclusions

Comes complete with Digital Electronic Control System (DESC), Rigid Suction System, High Pressure Filter, AG-14 Airless Spray Gun, 15 metre 1/2” Airless Hose, 3/8” Whip Hose, 2SpeedTip 527/235, EMI Filter, Tool Kit and Pump Protection Start-up Pack plus 15 metre 3/8″ Airless Hose, Hose Joiner 3/8″ and 425 TradeTip 3 and Base.

Specifications & Material Recommendations

Specifications

SpecificationDescription
Power2.9 HP / 2.2 kW
Max Pressure3200 psi
Max Flow Rate5.0 l/min
Weight50 kg
Max Tip Size 1 Gun0.039"
Max Tip Size 2 Guns0.026"
Max Hose Length90 m
Annual Usage40,000 litres

Material Recommendations

MaterialCompatibility
Water-based primers and sealers, oil-based primers and sealersIdeal Performance
Semi gloss/gloss interior woodwork -- Smaller Tip RecommendedIdeal Performance*
Exterior water-based paintsIdeal Performance
Interior acrylic low sheen/satin walls, interior undercoatsIdeal Performance
Ceiling acrylicsIdeal Performance
Roof coatings, floor coatings, thin membranes, adhesives, sealantsIdeal Performance
Structural waterproofing, bituminous coatings, thick membranesIdeal Performance
Intumescent coatings - Level 5 Plaster Filler OnlyIdeal Performance*
Oil based semi gloss/ gloss top coat - Smaller Tip RecommendedAcceptable Performance*
Synthetic resin varnishes, PVC lacquers, 2K lacquers - Smaller Tip RecommendedAcceptable Performance*
Flammable materials - not recommendedNot Recommended

*Smaller Tip Recommended *Level 5 Plaster Filler Only

Product Documents

Manual

Manualpdf

ProSpray-3.39-PFP-Spray-Pack.pdf

ProSpray-3.39-PFP-Spray-Pack.pdfpdf
