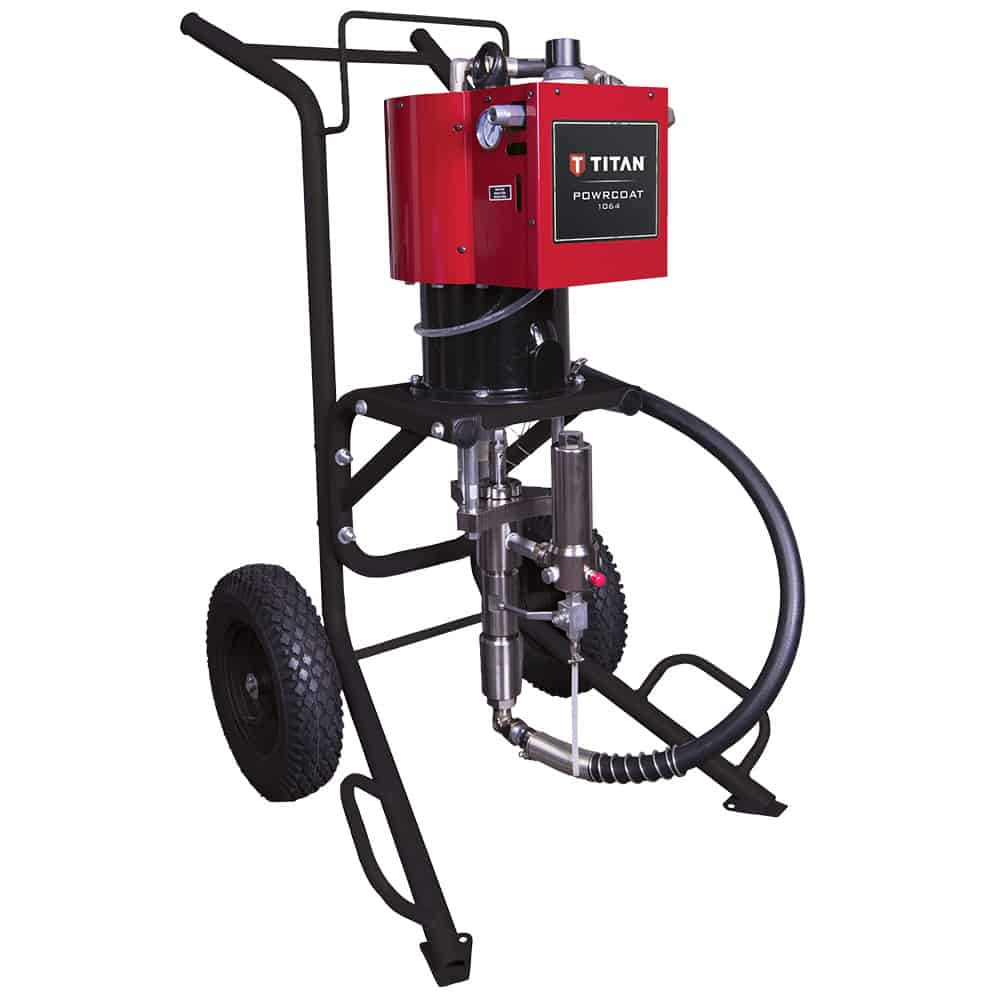

Titan PowrCoat 1064

Titan PowrCoat 1064

$9,880.00

  • So tough they are virtually indestructible. Severe Service? means twice the life with half the maintenance. The durability, reliability, and ease of operation that you need are built in to each unit. PowrCoat Sprayers have been used throughout the world, providing their owners with dependable, efficient operation.

    Comes complete on a trolley (can be converted to wall mount) with Flexible Suction Hose, High Pressure Filter (50 mesh), Prime Spray Valve, Air Regulator with Water Trap & Auto-drain, Automatic Air Motor Lubricator, Earthing wire & clamp.

    Includes 15m Airless Hose, S-7 Airless Gun, 517 TR1 High Pressure Tip & High Pressure Tip Base.

    Severe Service?

    • Hard-chrome polished piston and cylinders give long life
    • Tungsten carbide valve seats with hardened steel check balls provide better performance and durability
    • PowrCoat? piston is engineered to provide unmatched chemical and solvent resistance while creating an ultra-smooth surface that operates with a smooth stroke that provides less friction and wear.
    • Pumps are designed for easy application of today?s low-VOC, high solids, and abrasive coatings

    Aircare? System

    • Complete FRL (Filter, Regulator, Lubricator) standard with every PowrCoat?
    • Eliminates motor icing
    • Automatic draining moisture trap
    • Easy access air filter & lubrication reservoir

    Videos

    Features

    Specifications

    • Severe Service Fluid Section: Features self-adjusting packings
    • Severe Service Piston Rod and Cylinder: Titan exclusive hard-chrome plating is the hardest and slickest wear surface in the industry
    • High Capacity Outlet Filter: Features 3/8? and 1/4? outlets and easy-on/easy-off filter access
    • Air Filter, Moisture Separator, Regulator and Lubricator: Included on all PowrCoat models
    • Heavy-Duty Frame: Features large 16? pneumatic tires, convenient lift handles, heavyduty crane hook and high capacity hose rack that holds up to 200 feet of 1/2? hose
    • Part No.
    • 05331064C
    • Ratio
    • 64:01:00
    • Stroke Length
    • 4.75 inches
    • Pressure
    • 6400 psi
    • Approximate Air Requirement
    • 57.7 scfm
    • Fluid Output per Cycle
    • 188 cc
    • Max Recommended Output
    • 18 l/min
