HeavyCoat 950 E

$12,989.00

SKU: 528505
  • Ideal for multi-residential, large commercial & roofing applications
  • Telescopic handle
  • Holds up to 60m of airless hose
  • Electrically operated, with option to switch to petrol
  • Optional 100 litre hopper available

Features & Inclusions

Features

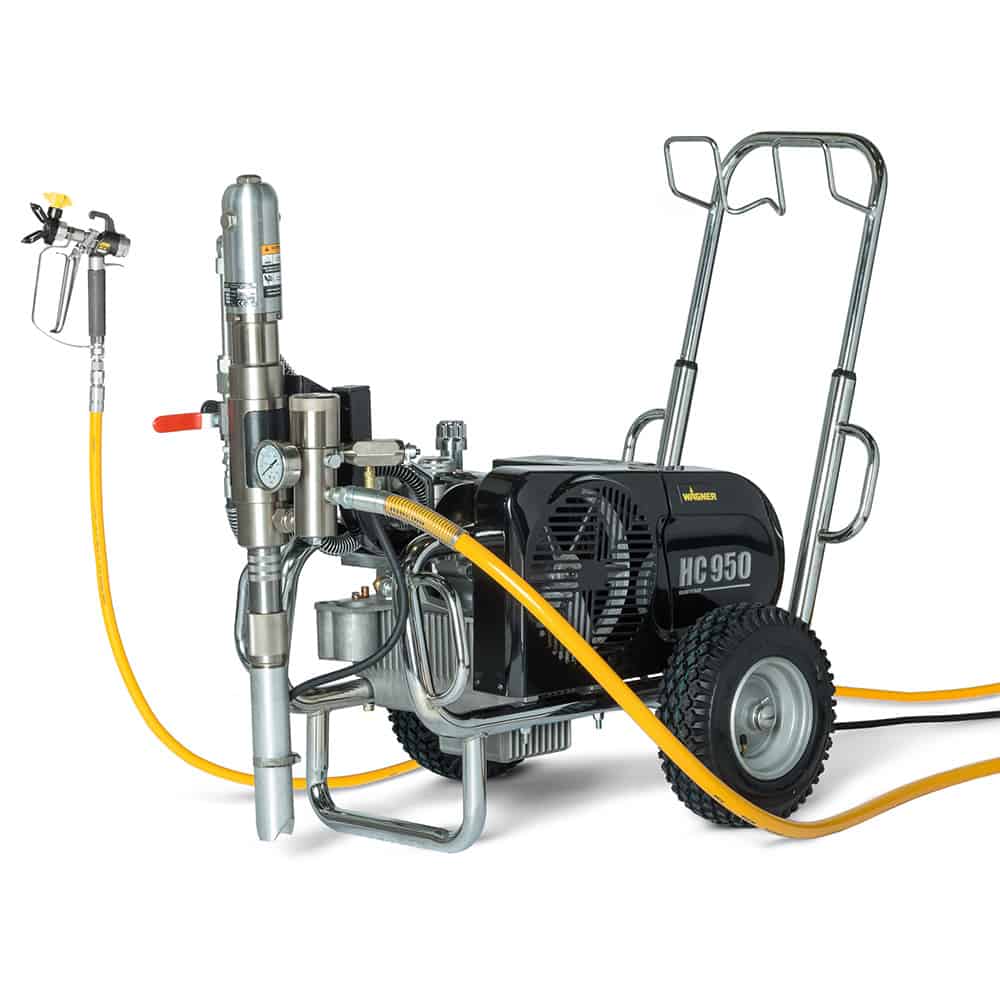

The HeavyCoat 950 E is a powerful, electric hydraulic airless sprayer designed for large-scale commercial, industrial and high-viscosity applications. With a 4.0 HP motor and a flow rate of 6.6 L/min, it’s ideal for spraying bituminous coatings, intumescent paints, fillers and other heavy materials – even at height or with long hose lengths.

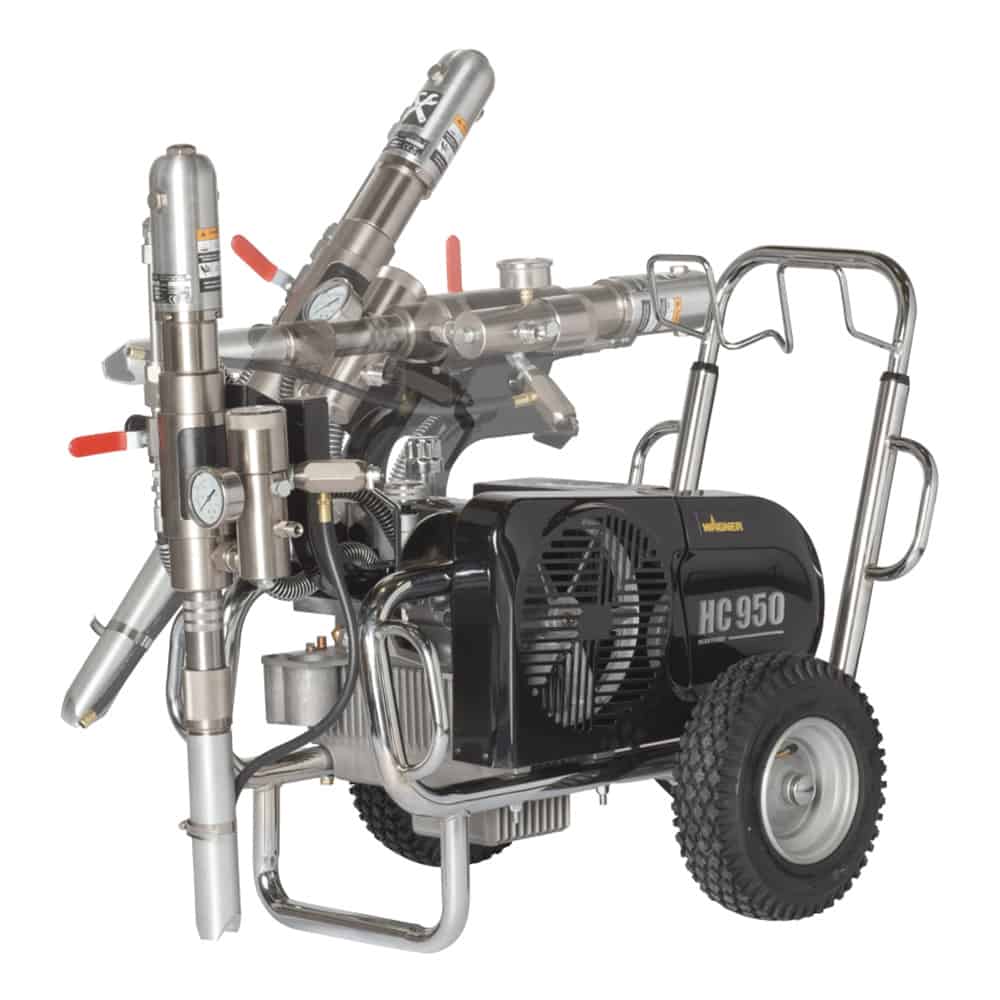

  • SwingCart design allows the pump to swivel up for easy cleaning, transport, operation directly from a bucket or container.
  • Supplied with the premium AG-14 Contractor Gun, made from stainless steel for durability and consistent spray quality.
  • Includes a heavy-duty 3/8"" high-pressure airless hose for improved flow and performance on demanding jobs.
  • Operates on standard power – no heavy current required – despite its high-performance output.
  • Telescopic handle and compact design make transport and storage easier, even on busy job sites.
  • Compatible with an optional 100-litre hopper set for high-volume applications and reduced refill interruptions.

Inclusions

Comes complete on heavy duty trolley, high flow hydraulic piston pump, AG-14 premium airless gun, 15 metre 3/8” hose, airless tip, base and tool kit.

Specifications & Material Recommendations

Specifications

SpecificationDescription
Power4.0 HP / 3.1 kW
Pressure3625 psi
Max Flow Rate6.6 l/min
Weight83 kg
Max Tip Size 1 Gun0.052"
Max Tip Size 2 Guns0.023"
Max Hose Length90 m
Material pH Range3.5 - 9 pH
Recommended Annual Usage80,000 litres

Material Recommendations

MaterialCompatibility
Exterior water-based paints Ideal Performance
Interior acrylic low sheen/satin walls, interior undercoatsIdeal Performance
Ceiling acrylics Ideal Performance
Roof coatings, floor coatings, thin membranes, adhesives, sealants Ideal Performance
Structural waterproofing, bituminous coatings, thick membranes Ideal Performance
Intumescent coatings Ideal Performance
Flammable materials Not Recommended

Product Documents

Manual

Manualpdf
