Features & Inclusions
Features

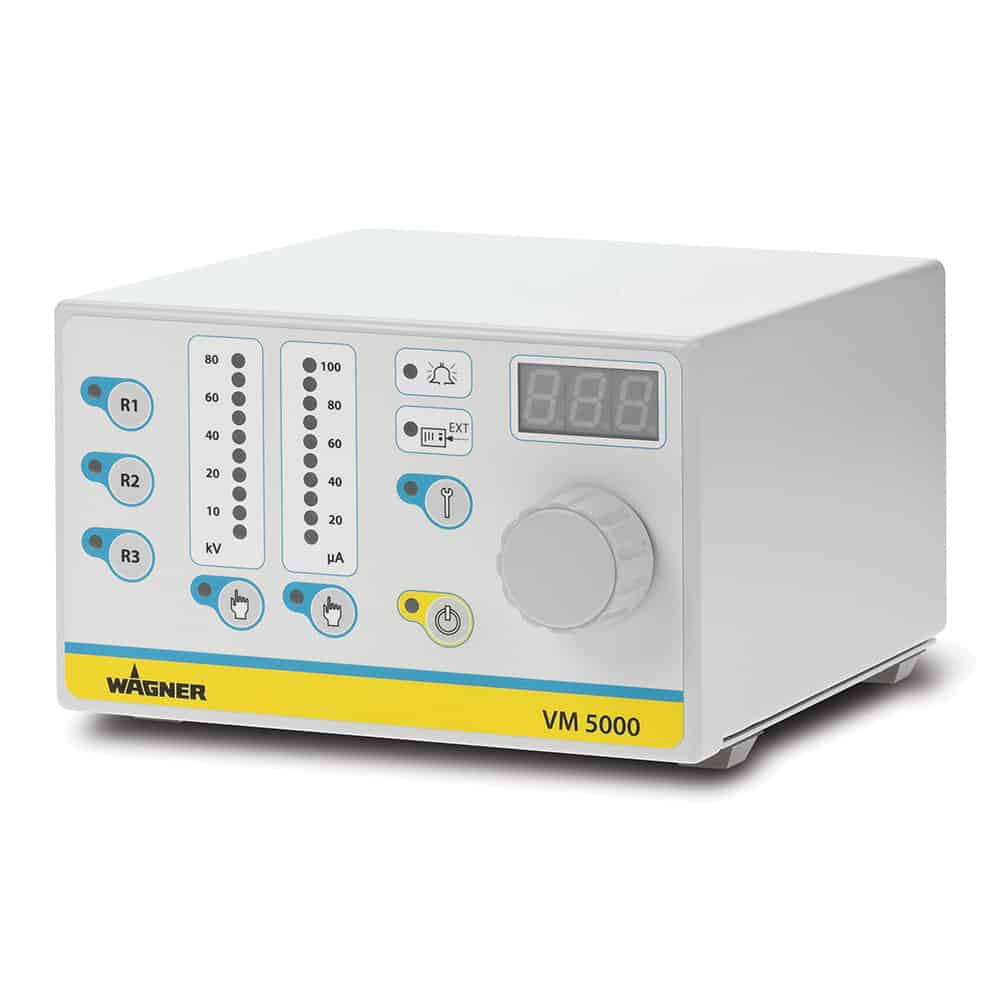

The VM 5000 supplies the GM 5000EA and GM 5000EAC manual guns with 80 kV, featuring monitoring functions and safety shutdown for reliable and safe operation. Separate displays provide real-time information on high voltage, spraying current, earthing, fault conditions, ensuring precise control and optimal performance.
- Separate displays for high-voltage kV (set and actual values)
- Spraying current in µA with limit up to 100 µA
- Earthing check for operator safety
- Fault displays for quick troubleshooting
- Adjustable high voltage (kV) for precise control
- Gun cable length up to 40 m without power loss, maximum 80 m
- ATEX Zone 2 compliant for closer placement to the workplace
- Simple recipe selection – save and activate three preset voltage and current recipes
- Service interval settings to monitor spraying time and schedule maintenance
Inclusions
Comes with VM 5000 power pack.
